pHV1248， pHV1249 Tn10转座子载体

BioVector NTCC质粒载体菌种细胞蛋白抗体基因保藏中心www.biovector.net

Map图谱

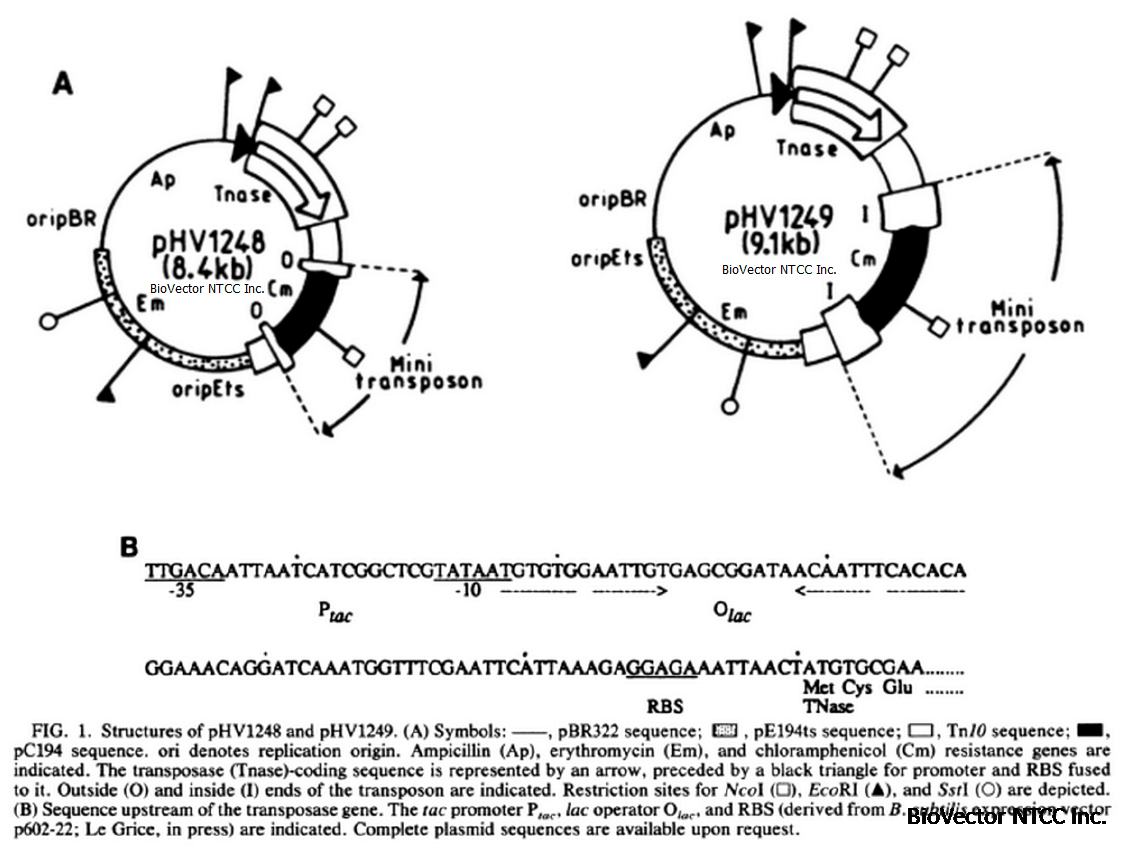

Structures of pHV1248 and pHV1249. (A) Symbols: -, pBR322 sequence; E , pE194ts sequence; u, TnJO sequence; _,

pC194 sequence. ori denotes replication origin. Ampicillin (Ap), erythromycin (Em), and chloramphenicol (Cm) resistance genes are

indicated. The transposase (Tnase)-coding sequence is represented by an arrow, preceded by a black triangle for promoter and RBS fused

to it. Outside (0) and inside (I) ends of the transposon are indicated. Restriction sites for NcoI (L), EcoRI (A), and SstI (0) are depicted.

(B) Sequence upstream of the transposase gene. The tac promoter ptac, lac operator 0lac and RBS (derived from B. subtilis expression vector

p602-22; Le Grice, in press) are indicated.

Complete plasmid sequences are available upon request.
